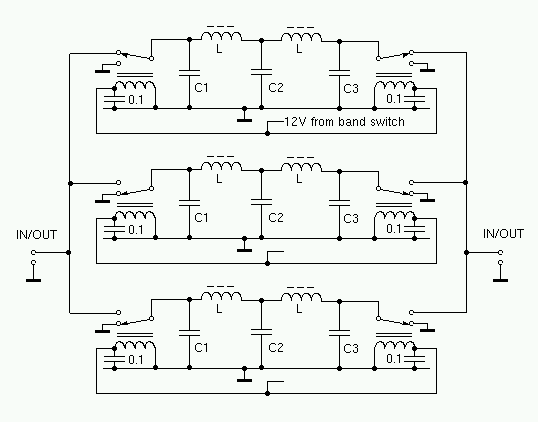

LOW PASS FILTER



LOW PASS FILTER


Band C1, C3 C2 L Core Turns
80M 820pF 1640pF 2.1 T50-2 20
40M 440pF 880pF 1.1 T50-2 14
17M 180pF 360pF 0.43 T68-2 9
10M 100pF 200pF 0.25 T68-2 7
COMPONENT VALUES
