low-pass filters

"Station WRNY is equipped with the latest device known to the world of radio engineering, called a harmonic suppressor, the effect of which is the elimination of the signals of WRNY from every frequency except that to which it has been assigned by the Government, which means, in fan language, that the station may be tuned in on only one setting of the dial." —Radio News magazine, August 1925

A low-pass filter attentuates the energy above a specified cut-off frequency. These filters are used to reduce the intensity of harmonics so that they don't interefere with other signals. Most of this filters on this page were designed for various ham radio gear operating in the bands from 1.8 to 14 MHz.

Unless otherwise noted these filters have 50 or 52 ohms input and output impedance. Capacitances are expressed in picofarads, inductances in microhenries. Most authors recommend using silver-mica capacitors.

for transmit frequencies in the range of	C1	C2	L1
1500-2000 kHz	1800	1800	30 turns #26 wire on T-50-2 toroid
3500-4500 kHz	680	680	21 turns #22 wire on T-50-2 toroid
5500-7300 kHz	470	470	14 turns #22 wire on T-50-2 toroid
5500-7300 kHz	820	820	2.2

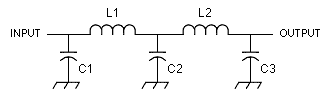

approx. cutoff freq.	C1	C2	C3	L1, L2	info source
1200 kHz	.0039 uF	.0056 uF	.0039 uF	6.8	North Country Radio AM88 kit design
1800 kHz	.0033 uF	.0043 uF	.0033 uF	5.6	North Country Radio AM88 kit design
2000 kHz	1592 pF	3184 pF	1592 pF	3.98	Solid State Design for the Radio Amateur
7300 kHz	470 pF	1000 pF	470 pF	42 turns #26 wire on T-50-2	Solid State Design for the Radio Amateur

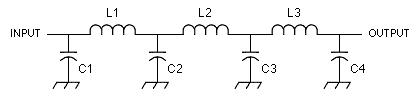

cutoff frequency (in MHz)	30 dB attenuation point (in MHz)	C1, C4	C2, C3	L1, L3	L2
2.16	4.0	820	2200	4.44	5.61
4.12	7.3	470	1200	2.43	3.01
7.36	12.9	270	680	1.38	1.70
10.37	15.8	270	560	1.09	1.26
Based on an article by Ed Wetherhold published in UK Short Wave (Dec. 1983).
